Spatial Augmentation Example - Random Values
The first thing is to load the necessary packages and set the random seed for reproducibility.
Note: matplotlip is not a requirement for the medipt package, but it is used here to visualize the results. You can ignore matplotlib and simple save the image and/or segmentations and open them in another viewer or your choosing.
[17]:
import numpy as np
import matplotlib.pyplot as plt
import medipt
import SimpleITK as sitk
import random
seed = 42
random.seed(seed)
np.random.seed(seed)
Load the sample image. This image comes from the VerSe spine segmentation dataset. This is a 3D spine segmentation and identification challenge dataset of 3D CT spines.
[18]:
image = sitk.ReadImage('verse260.nii.gz')
seg = sitk.ReadImage('verse260_seg.nii.gz')
print('size:', image.GetSize())
print('spacing:', image.GetSpacing())
print('direction:', image.GetDirection())
print('origin:', image.GetOrigin())
size: (196, 546, 61)
spacing: (1.0, 1.0, 2.0)
direction: (7.929511846977472e-08, 8.748137356131643e-08, -0.9999999999999931, 0.995192868658119, 0.097934438130913, 8.74813750328934e-08, -0.09793443813091307, 0.9951928686581183, 7.929511980364569e-08)
origin: (60.0, -292.965087890625, -964.2619018554688)
The next step is not necessary, but first we will reorient the image and segmentation.
[19]:
reorient_filter = sitk.DICOMOrientImageFilter()
reorient_filter.SetDesiredCoordinateOrientation('LPS')
original_orientation = reorient_filter.GetOrientationFromDirectionCosines(image.GetDirection())
image = reorient_filter.Execute(image)
seg = reorient_filter.Execute(seg)
Now, we are going to define our augmentation and resampling parameters. For this example, we are going to resample the image to a isovoxel spacing of 1x1x1 mm and to an output shape of 256 by 256 by 512. We are going to keep the same direction and origin as the original image.
As we have a 3D image, dim=3.
Note: The overall transforms are generated using the medipt.transforms.generate_sitk_transform function. One of the parameters is legacy_random_state, which is set to True by default. In newer versions of numpy, which is used to generate the random transform parameters, has a newer mechanism for how random numbers are generated. This will not go into this here, but just note that is what the argument does.
Also, since we defined the seed above, we do not need to pass the seed into medipt.transforms.generate_sitk_transform. The seed can be passed through as well, and the result will be the same. For simplicity, if seed is globally defined, the seed argument should be left as None and the legacy_random_state is defined as True.
The seed should only be passed if it is defined as a np.random.Generator or np.random.BitGenerator and legacy_random_state is set to False.
[20]:
image_size = (256, 256, 512)
resample_spacing = (1, 1, 1)
dim = 3
spatial_params = {}
spatial_params['input_size'] = image.GetSize()
spatial_params['input_spacing'] = image.GetSpacing()
spatial_params['input_origin'] = image.GetOrigin()
spatial_params['input_direction'] = image.GetDirection()
spatial_params['output_size'] = image_size
spatial_params['output_spacing'] = resample_spacing
spatial_params['output_origin'] = image.GetOrigin()
spatial_params['output_direction'] = image.GetDirection()
spatial_params['random_rotation'] = [0.25, 0.25, 0.25]
spatial_params['random_translation'] = [30, 30, 30]
spatial_params['random_scaling'] = [0.15, 0.15, 0.15]
spatial_params['random_uniform_scaling'] = 0.15
spatial_params['random_flipping'] = [1, 0, 0]
spatial_params['random_elastic_deformation'] = True
spatial_params['max_deformation'] = [25, 25, 25]
spatial_params['num_grid_points'] = [6, 6, 6]
spatial_params['spline_order'] = 3
medipt_composite_transform, transform_list = medipt.transforms.generate_sitk_transform(params=spatial_params,
dim=dim,
seed=seed,
legacy_random_state=True)
Initialize the resample functions for both the image and the segmentation. This allows us to have slightly different parameters for both, like the default_pixel_value, pixel_type, and the interpolator. The image resample could use different interpolators but the segmentation resampler should always use nearest to keep the output strictly integer.
[21]:
image_resampler = medipt.resample_image.ResampleImage(interpolator='linear',
post_processing_sitk=None,
dim=dim,
default_pixel_value=-1024,
)
seg_resampler = medipt.resample_image.ResampleImage(interpolator='nearest',
post_processing_sitk=None,
dim=dim,
pixel_type=sitk.sitkUInt8,
default_pixel_value=0,
)
Need to convert the medipt_composite_transform to a sitk.Transform object to use in the resample functions.
[22]:
composite_transform = medipt_composite_transform.create_composite(dim)
Put it all together
[22]:
[23]:
resampled_img = image_resampler.get_resampled_images(image, transform=composite_transform,
input_output_space_dict=spatial_params)
resampled_seg = seg_resampler.get_resampled_images(seg, transform=composite_transform,
input_output_space_dict=spatial_params)
[24]:
from matplotlib.colors import ListedColormap, Normalize
import numpy as np
colors_itk = (1 / 255) * np.array([
[255, 0, 0], [0, 255, 0], [0, 0, 255], [255, 255, 0], [0, 255, 255],
[255, 0, 255], [255, 239, 213], # Label 1-7 (C1-7)
[0, 0, 205], [205, 133, 63], [210, 180, 140], [102, 205, 170], [0, 0, 128],
[0, 139, 139], [46, 139, 87], [255, 228, 225], [106, 90, 205], [221, 160, 221],
[233, 150, 122], [165, 42, 42], # Label 8-19 (T1-12)
[255, 250, 250], [147, 112, 219], [218, 112, 214], [75, 0, 130], [255, 182, 193],
[60, 179, 113], [255, 235, 205], # Label 20-26 (L1-6, sacrum)
[255, 235, 205], [255, 228, 196], # Label 27 cocc, 28 T13,
[218, 165, 32], [0, 128, 128], [188, 143, 143], [255, 105, 180],
[255, 0, 0], [0, 255, 0], [0, 0, 255], [255, 255, 0], [0, 255, 255],
[255, 0, 255], [255, 239, 213], # 29-39 unused
[0, 0, 205], [205, 133, 63], [210, 180, 140], [102, 205, 170], [0, 0, 128],
[0, 139, 139], [46, 139, 87], [255, 228, 225], [106, 90, 205], [221, 160, 221],
[233, 150, 122], # Label 40-50 (subregions)
[255, 250, 250], [147, 112, 219], [218, 112, 214], [75, 0, 130], [255, 182, 193],
[60, 179, 113], [255, 235, 205], [255, 105, 180], [165, 42, 42], [188, 143, 143],
[255, 235, 205], [255, 228, 196], [218, 165, 32], [0, 128, 128] # rest unused
])
cm_itk = ListedColormap(colors_itk)
cm_itk.set_bad(color='w', alpha=0)
wdw_sbone = Normalize(vmin=-500, vmax=1300, clip=True)
wdw_hbone = Normalize(vmin=-200, vmax=1000, clip=True)
[25]:
sagittal_slice = 140
image_np = sitk.GetArrayFromImage(resampled_img)
seg_np = sitk.GetArrayFromImage(resampled_seg)
seg_mask = np.ma.masked_where(seg_np < 0.9, seg_np)
image_slice = image_np[:, :, sagittal_slice]
seg_slice = seg_mask[:, :, sagittal_slice]

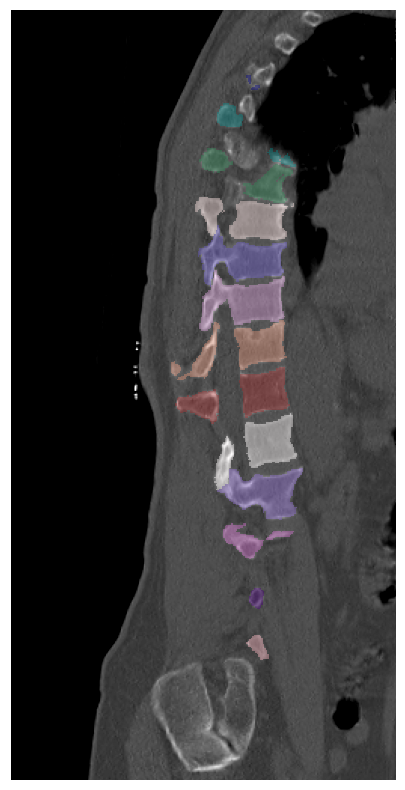

fig = plt.figure(figsize=(10, 10))
ax = fig.add_subplot(111)
ax.imshow(image_slice, cmap='gray', norm=wdw_sbone)
ax.imshow(seg_slice, interpolation='none', alpha=0.4, cmap=cm_itk, vmin=1, vmax=65)
bottom = 0
top = image_np.shape[0]
axis_crop_min = 0
axis_crop_max = 256
ax.set_ylim(bottom=bottom, top=top)
ax.set_xlim(left=axis_crop_max, right=axis_crop_min)
ax.axis('off')
plt.show()
